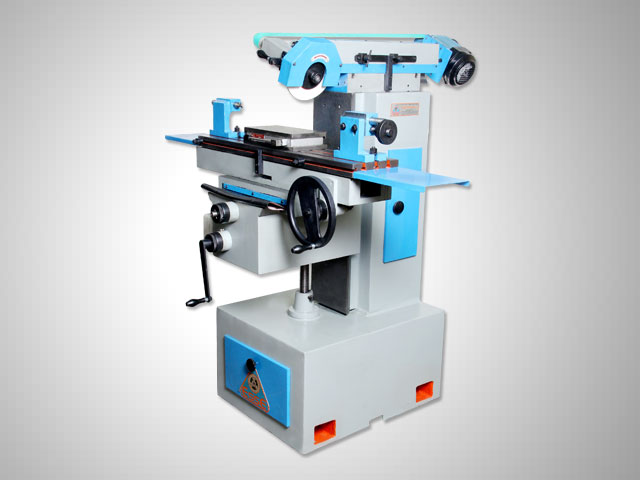

Broach Sharpening Machine
With our expertise in the concerned field, we are engaged in offering a wide array of Grinding Machinery, Lathes Machinery and Tool & Cutter Machinery that are widely used in various industries for different purposes. These are manufactured using the best quality factor inputs in order to meet the international quality standards. Further, these are available in various sizes, capacity and dimensions, and can be customized as per our clients’ specifications.
We Offer:

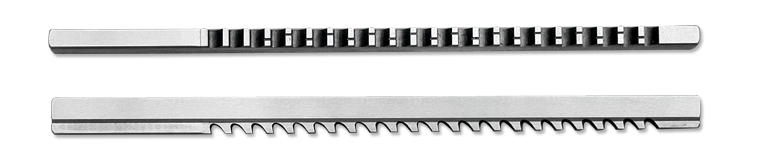

This machine is most suitable to meet the general requirements of sharpening broaches in small or large industries. This low-cost machine is designed specifically for re-sharpening as well as nicking operations of circular and flat broaches, back off operation on cutting teeth of flat broaches. Its rigid bed, well balanced and vibration-free grinding spindle enable the machine to perform with high precision.
Make an Enquiry
| Specifications | SBS-650 | SBS-1300 |
|---|---|---|
| Length of table | 1000mm | 1500mm |
| Max. Sharpening Length | 650mm | 1300mm |
| Height of Center | 125mm | 125mm |
| Max. Length of Flat Broach | 200mm | 200mm |
| Table Surface dimension | 1000x200 | 1500x200 |
| No. T Slots & size | 3/12mm | 3/12mm |
| Grinding Spindle Motor (H.P/RPM) | 1/2800 | 1/2800 |
| Min. & Max. Diameter of grinding wheel | 90-200 | 90-200 |
| Spindle RPM | 4000RPM | 4000RPM |
- Design & specifications are subject to change without prior notice.
- Picture are illustrative only. parts shown may not be part of standard equipments.
